Vibrocompaction Design in Dallas: Technical Specifications and Field Execution

A common mistake in the DFW construction market is specifying vibrocompaction based on a generic grid without analyzing the grain-size curve and fines content of the local deposit. Dallas has extensive pockets of the Eagle Ford Shale weathered into sandy silts and the older Terrace Deposits along the Trinity River. If the material holds more than 15% silt, a standard vibroflotation grid will simply not drain the excess pore pressure generated during vibration, and the contractor ends up with a mushy surface and zero improvement. Our design process starts by running a full grain-size analysis paired with Atterberg limits on split-spoon samples from the target stratum. We define the probe spacing, the amperage curve per stage, and the backfill gradation before any rig mobilizes. The goal is a measurable increase in relative density above 70%, verified by post-treatment SPT or CPT testing.

Vibrocompaction design in Dallas must account for the transition zone between clean Trinity River sands and silty Eagle Ford residuum — missing that contact means missing the target density.

Methodology and scope

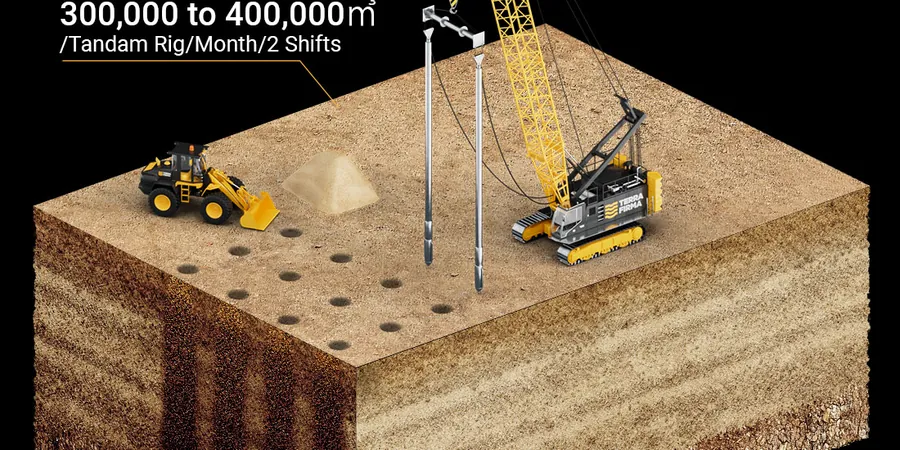

Dallas summer heat waves, with surface temperatures exceeding 105°F, bake the upper 3 feet of granular soil and alter the moisture content before treatment, which forces the field team to adjust the water injection rate at each probe point. The vibrocompaction process relies on a cylindrical vibrator penetrating under its own weight assisted by water flushing, followed by stepwise extraction and backfill densification. We specify the probe type — electric or hydraulic — based on the required compaction radius and the presence of underground obstructions common in older industrial corridors south of downtown. The design report includes a compaction grid superimposed on the foundation footprint, stage-by-stage amperage limits, and a hold-point schedule for verification testing. For sites where the sand layer is interbedded with thin clay seams, we often combine the design with a liquefaction analysis per NCEER methodology, correlating the post-improvement SPT blow counts to the cyclic stress ratio demanded by the Dallas-area design earthquake. The team also coordinates with the deep excavations design when the compacted zone serves as a lateral support platform for adjacent cuts.
Vibrocompaction Design in Dallas: Technical Specifications and Field Execution

Local considerations

A 10-story residential tower near the Trinity River floodplain showed a 40-foot loose sand layer with N-values below 8 blows per foot. The original contractor proposed a standard 8-foot triangular grid without a site-specific design, but our lab ran a sieve stack and hydrometer analysis that revealed 12% non-plastic fines. That fines fraction, while non-cohesive, was enough to cut the radial drainage coefficient by half. We tightened the grid to 6 feet, increased the dwell time at the bottom of each stage, and shifted the backfill to a more open-graded crushed limestone. Post-treatment SPTs averaged 22 blows, exceeding the 70% relative density target. Ignoring that subtle grain-size detail would have left the structure on a compressible zone with cyclic mobility risk under the MCE-level ground motion. The Dallas Central Appraisal District lists over 1,900 commercial parcels within 1,000 feet of the Trinity River levee system — many sit on similar profiles that demand a tailored compaction specification, not a rule-of-thumb layout.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.xyz

Applicable standards

ASTM D1586-18 (SPT), ASTM D2487-17 (Unified Soil Classification), IBC 2021 Section 1803, ASCE 7-22 Chapter 20 (Site Classification), NCEER-97-0022 (SPT-based liquefaction triggering)

Associated technical services

01

Pre-treatment soil characterization

Full grain-size distribution (ASTM D422/D6913), Atterberg limits (ASTM D4318), and specific gravity to confirm suitability for vibrocompaction and define the fines threshold.

02

Compaction grid design and probe specification

Triangular or square grid layout with center-to-center spacing, stage heights, dwell times, water pressure, and backfill gradation specified for the site stratum.

03

Real-time quality control monitoring

Digital amperage and penetration rate recording during probe advancement and extraction, with hold-point triggers for refusal and backfill bridging.

04

Post-treatment verification testing

SPT, CPT, or sand cone density tests at grid centroid locations to document achieved relative density versus specification.

Typical parameters

ParameterTypical value
Applicable soil type (per IBC 1803.5.2)Clean sands to silty sands with <15% passing #200 sieve
Effective depth range (standard vibrator)6 to 65 ft below working grade
Probe spacing (triangular grid)4 to 12 ft center-to-center, defined by soil permeability and target Dr
Minimum target relative density (Dr)70% for commercial structures, 80% for critical facilities (ASCE 7 Risk Category III-IV)
Post-treatment verification methodSPT (ASTM D1586) at 3x3 ft triangular cell centroid or CPT (ASTM D5778)
Backfill gradation specificationASTM C33 #57 stone or clean concrete sand, percolating through vibrating column
Vibration operating frequency30–60 Hz, matched to soil's natural frequency response
Power consumption monitoringReal-time amperage recording to detect refusal and backfill bridging

Frequently asked questions

What soil types in Dallas are suitable for vibrocompaction?

Vibrocompaction works in granular soils with less than 12-15% fines passing the #200 sieve. The clean sands of the Trinity River alluvium and the Pleistocene terrace deposits are ideal candidates. When the Eagle Ford residuum produces silty sand with higher fines content, we run a grain-size analysis first to confirm drainability and may recommend a vibro-replacement alternative.

How deep can vibrocompaction treat a loose sand layer?

Standard electric vibrators reach 65 feet, and larger hydraulic units can extend to 100 feet. Most Dallas site requirements fall within 20 to 50 feet, matching the depth of the Quaternary alluvial deposits over the Austin Chalk bedrock.

What verification test is required after vibrocompaction?

We specify SPT (ASTM D1586) or CPT (ASTM D5778) at the centroid of the compaction cell, usually one test per 1,000 square feet of treated area or per column row, whichever is more restrictive. The acceptance criterion is a corrected N-value or cone tip resistance corresponding to a relative density of 70% or higher.

How much does a vibrocompaction design and testing package cost in Dallas?

A complete package — pre-treatment lab testing, compaction grid design, QC monitoring, and post-treatment verification — typically ranges from US$1.370 to US$5.440 depending on treatment depth, number of verification points, and the extent of laboratory characterization required.

How long does the full design-to-verification cycle take?

Laboratory characterization takes 3-5 working days. The design report follows within 3 days after lab data release. Field QC runs concurrently with the compaction contractor's schedule, and post-treatment verification testing is completed within 2 days of probe completion. A typical 20,000-square-foot site finishes the technical cycle in 2-3 weeks.
