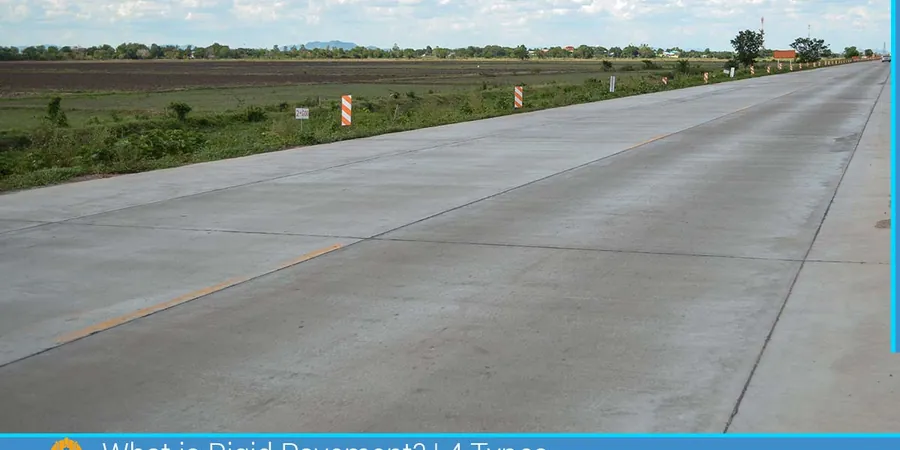

Designing a concrete pavement in Uptown Dallas versus one in the Trinity River floodplain requires two completely different engineering approaches. The dense, overconsolidated clay in the northern suburbs reacts aggressively to seasonal moisture swings, while the alluvial soils near the river can lose bearing capacity faster than expected. Our rigid pavement design service focuses on quantifying these local subgrade conditions before a single cubic yard of concrete is ordered. We use geotechnical data to determine the required slab thickness, joint spacing, and base reinforcement for each specific site. In areas with highly plastic Taylor Marl, the design must account for a swelling potential that can easily lift a slab if the moisture barrier is inadequate. The process integrates in-situ permeability testing when drainage is a concern, and we often specify a stabilized subbase to isolate the pavement from the active zone. The goal is a pavement that won't crack prematurely, even when Dallas summer temperatures exceed 100°F for days on end.
A rigid pavement in Dallas performs only as well as its subgrade preparation. Ignoring the expansive clay layer beneath the slab is the fastest way to turn a 30-year design life into a 5-year maintenance headache.
Methodology and scope
Local considerations
In Dallas, we often see that the real threat to a concrete pavement isn't the traffic load—it's the moisture trapped beneath the slab. The city's hot, semi-arid climate creates a strong evaporation gradient that pulls water upward through the clay, concentrating sulfates and chlorides at the subbase interface. If the design doesn't include a proper vapor barrier or a drainage layer, this chemical attack can deteriorate the concrete from the bottom up, invisible until spalling appears at the surface. Another risk is thermal curling during the first 48 hours after placement: rapid cooling in the evening after a 100°F afternoon can lock in upward curl at the slab corners, making them vulnerable to cracking under the first heavy truck. Our rigid pavement design explicitly addresses these Dallas-specific failure modes by specifying the right curing compounds, joint activation timing, and subbase permeability. We also evaluate the risk of faulting between adjacent slabs, a problem that becomes expensive to retrofit once the pavement is in service.
Applicable standards
ASTM D1196 (plate load test for k-value), AASHTO Guide for Design of Pavement Structures 1993, ACI 360R-10 (Guide to Design of Slabs-on-Ground), Texas Department of Transportation (TxDOT) Pavement Design Guide
Associated technical services
Thickness Design and Jointing Plans
We determine the required concrete slab thickness based on the projected ESALs and the measured k-value of the subgrade. The jointing plan includes contraction, expansion, and construction joint locations, with dowel bar sizing and spacing calculated per AASHTO recommendations.
Subgrade Stabilization and Base Design
For expansive Dallas clays, we specify the depth of lime or cement treatment required to create a non-reactive working platform. This includes gradation, compaction requirements, and permeability specifications for the treated layer to prevent moisture migration into the slab.
Typical parameters
Frequently asked questions
How does the Dallas clay affect rigid pavement design differently than sandy soils?
Dallas clays, particularly the Taylor Marl and Eagle Ford formations, are highly expansive, meaning they swell when wet and shrink when dry. This volume change can lift a rigid pavement unevenly, causing cracking at the joints. Our design mitigates this by specifying a deep stabilized subbase, a moisture barrier, and sometimes overexcavation of the active clay zone, which is not typically required in sandy, non-expansive regions.
What's the typical cost range for rigid pavement design on a commercial parking lot in Dallas?
For a commercial parking lot in the Dallas area, the engineering design fee for a rigid pavement typically ranges from US$1,790 to US$6,020, depending on the project size, traffic load requirements, and the complexity of the subgrade investigation. This covers the geotechnical evaluation, thickness design, jointing plan, and construction specifications.
Do you design to TxDOT standards even for private projects?
Yes, we align our designs with TxDOT pavement standards and specifications, even for private commercial or industrial projects. This ensures the pavement meets rigorous, proven performance criteria for the local climate and soil conditions. We also apply ACI and AASHTO standards to address aspects like joint detailing and concrete mix durability that go beyond standard highway specs.
What is the minimum concrete thickness for heavy truck traffic in Dallas?
For heavy truck traffic, such as at a distribution center or industrial facility, the minimum slab thickness we specify is typically 7 inches, assuming a properly stabilized subbase with a k-value of at least 150 pci. If the subgrade is weaker or the traffic volume is exceptionally high, the design thickness may increase to 9 or 10 inches. The exact thickness is determined by the AASHTO 1993 design equation using the projected 20-year ESALs.
